Description
Description
- Gluing width: 690mm
- Glue layer thickness: 0.03~0.1mm
- Motor power: 220V50Hz120W
- Motor speed range: 0~30M/Min
- Machine weight: 56KG
- Overall dimensions: 1040mmx460mmx360mm
- Heating tube power: 2KW
- Drum diameter 76mm, middle axis 42mm, small axis 27mm
- Lower basin (water) size: 770*245*66 Upper basin (glue) size: 765*240*33

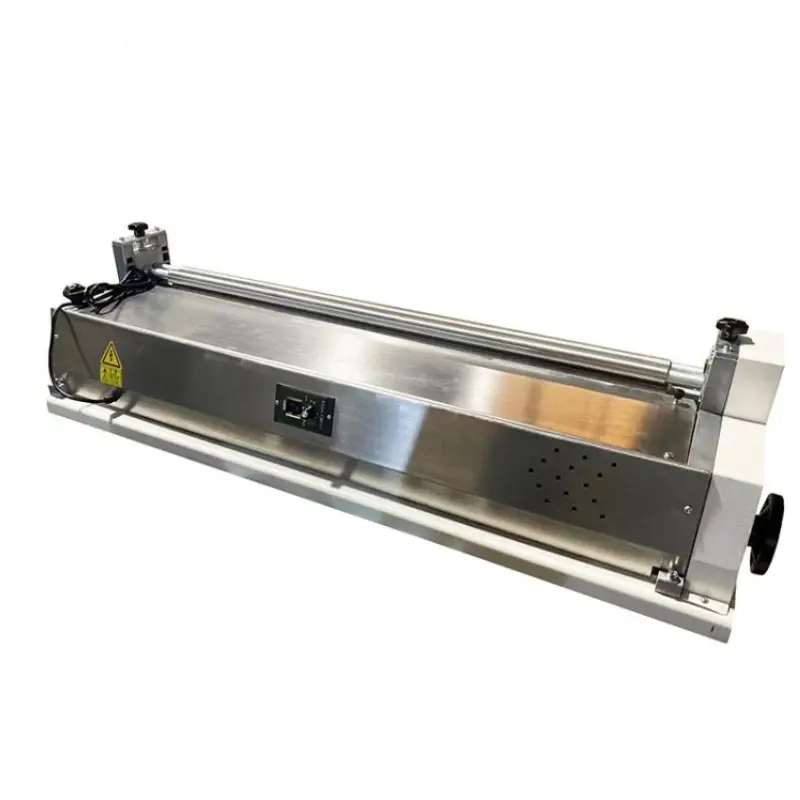

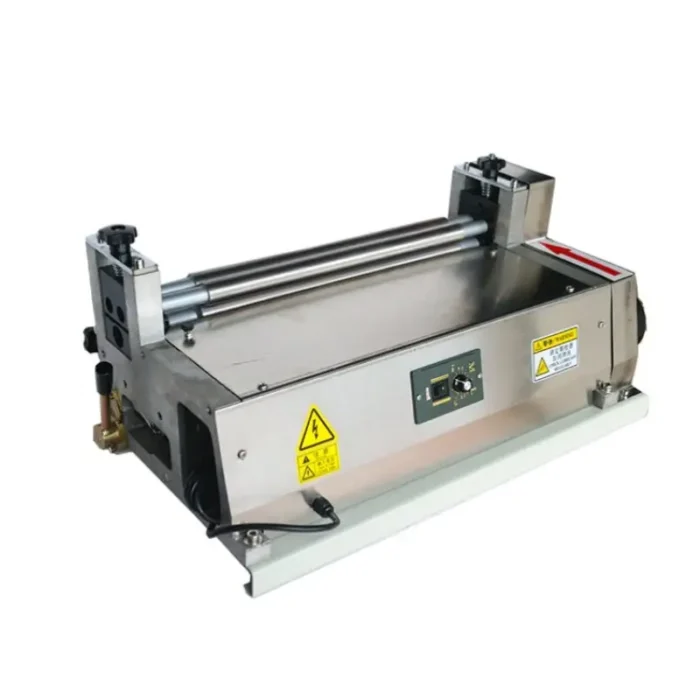

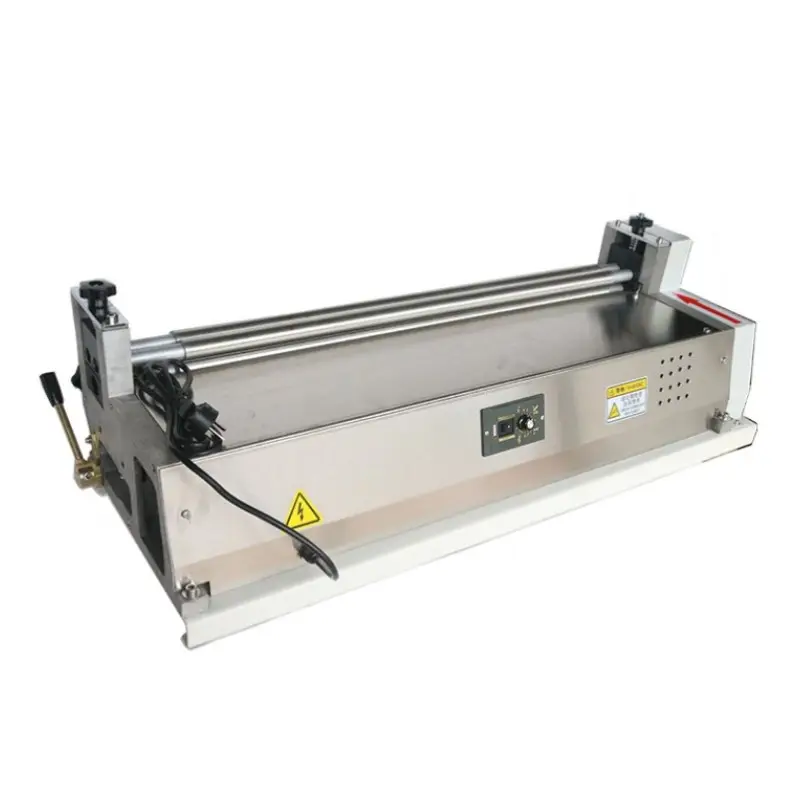

Structure and principle
This machine consists of:
- Glue basin loading and unloading handle
- Glue roller
- Glue roller
- Paper pressing roller
- Paper pressing roller adjustment handle
- Protective cover
- Motor speed knob
- Glue tray
- Bracket
- It is composed of manual handle and other parts
Reviews (0)
Related products

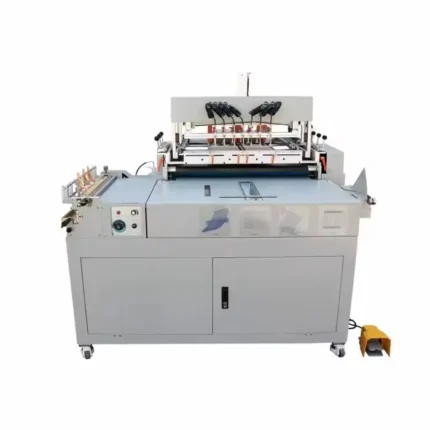

Fully Automatic Book Case Making Machine
